Description

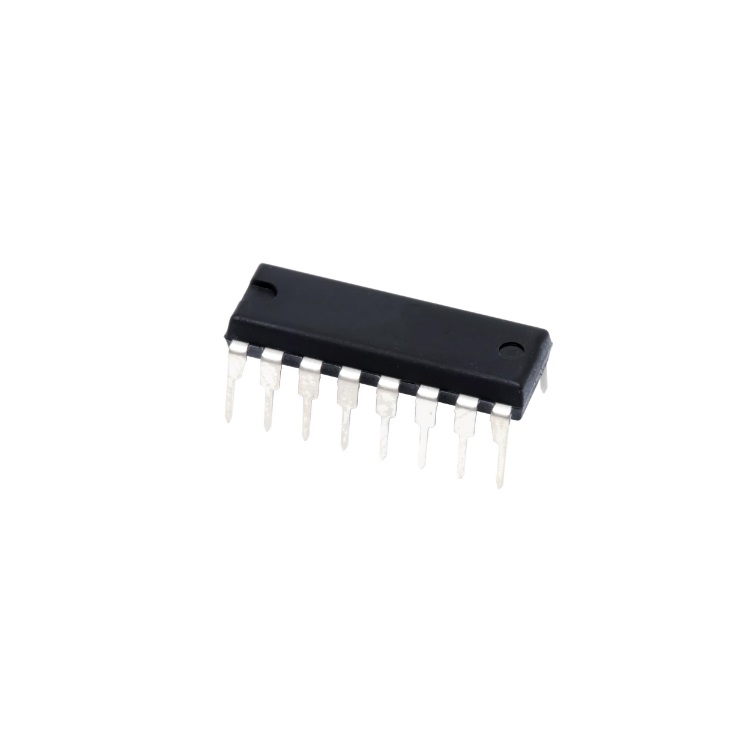

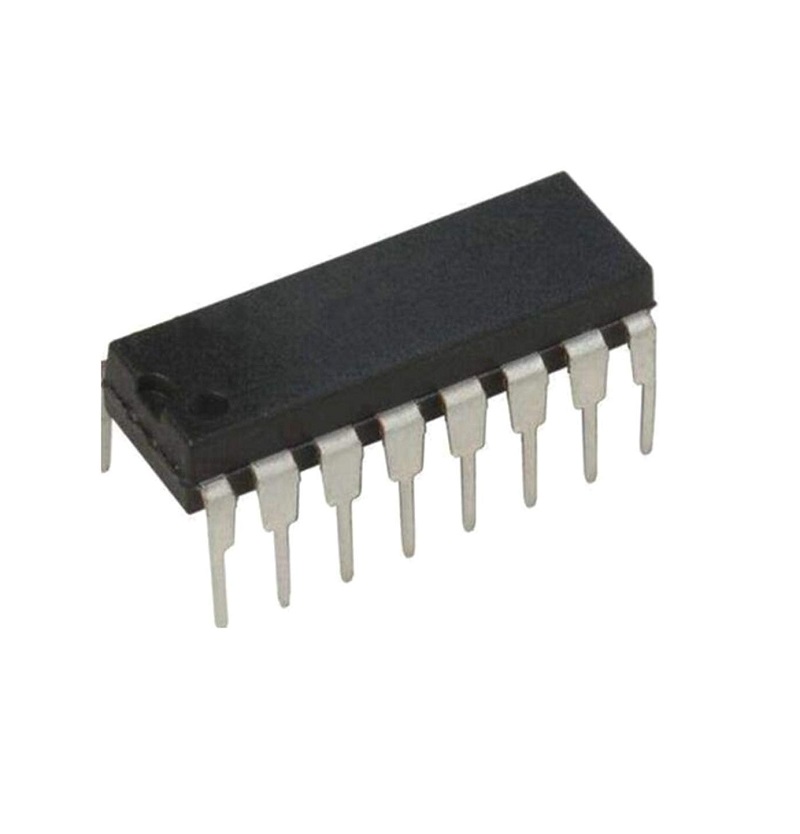

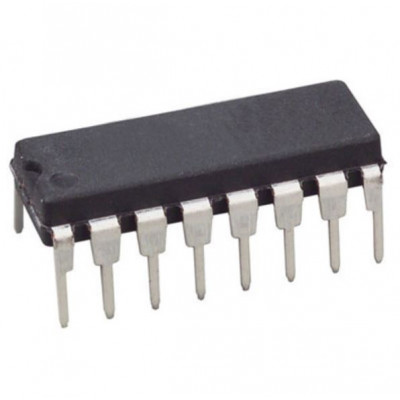

The CD4033 Decade Counter IC is a CMOS-based integrated circuit designed for driving 7-segment numeric displays. This versatile IC combines a 5-stage Johnson decade counter with an output decoder capable of directly interfacing with common-cathode 7-segment displays. It simplifies numerical counting and display applications, making it ideal for projects like clocks, counters, and digital meters.
The IC operates over a wide voltage range of 3V to 15V, ensuring compatibility with various digital and analog systems. It features a clock input for advancing the count, a carry-out pin for cascading multiple counters, and a reset input to initialize the count. Its DIP-16 package allows easy implementation on PCBs or breadboards.
