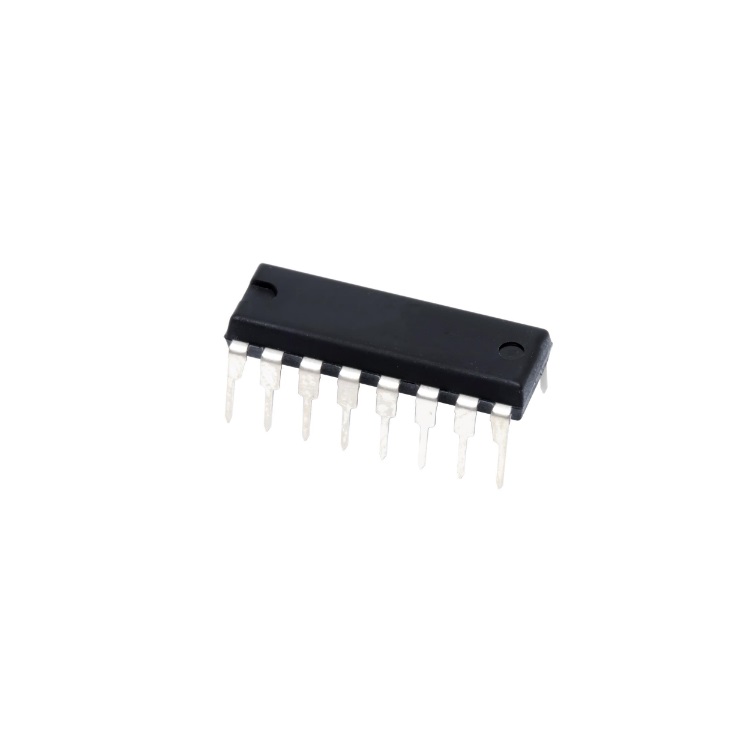

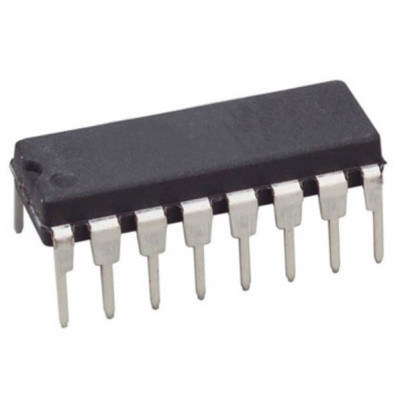

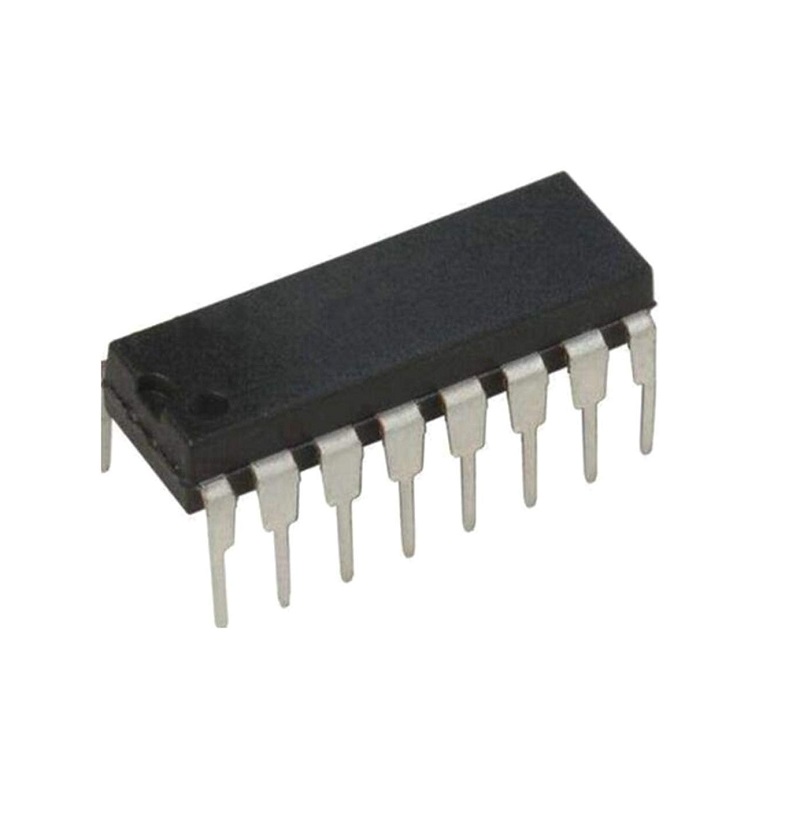

CD4060 Binary Counter IC

Description

The CD4060 Binary Counter IC is a highly versatile CMOS-based integrated circuit combining a 14-stage ripple-carry binary counter with a built-in oscillator. It is widely used in timing, frequency division, and event-counting applications, thanks to its ability to generate precise time delays and clock pulses. The internal oscillator can be configured using an external resistor and capacitor, eliminating the need for additional clock sources.

The IC operates over a wide voltage range of 3V to 15V, making it suitable for various digital and analog systems. Its compact DIP-16 package ensures easy integration into both breadboard and PCB designs, making it ideal for beginners and professionals alike.
