Description
Introduction

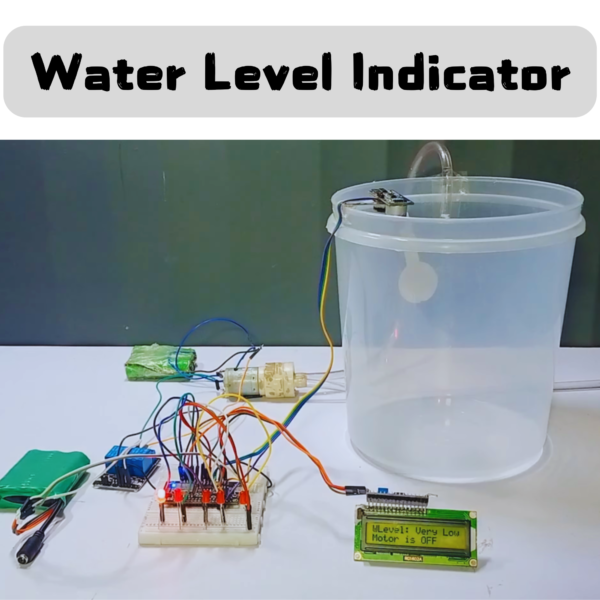

The Water Level Indicator with IoT Integration uses ultrasonic sensors and a microcontroller (NodeMCU) to monitor the water level in real-time. The system sends alerts and automatically controls water pumps to prevent overflow or dryness. It is displayed on an LCD screen, and the system is controlled remotely via the internet, ensuring efficient water management.
Usage Instructions
To fully understand how to use our product and get the best performance, we highly recommend watching our comprehensive tutorial video on YouTube. In this video, we cover step-by-step instructions on how to set up and operate the product, along with an in-depth explanation of its features and functionality. By watching the video, you’ll gain a clear understanding of how to make the most out of your purchase, ensuring an optimal experience.
System Components
- NodeMCU: Controls the system, connects to the internet, and manages sensor data.
- Ultrasonic Sensor: Measures the water level by sending ultrasonic waves.
- Relay Module: Controls the water pump motor based on water level readings.
- Motor: Automates the water filling process when needed.
- LCD Display: Displays the real-time water level for easy monitoring.

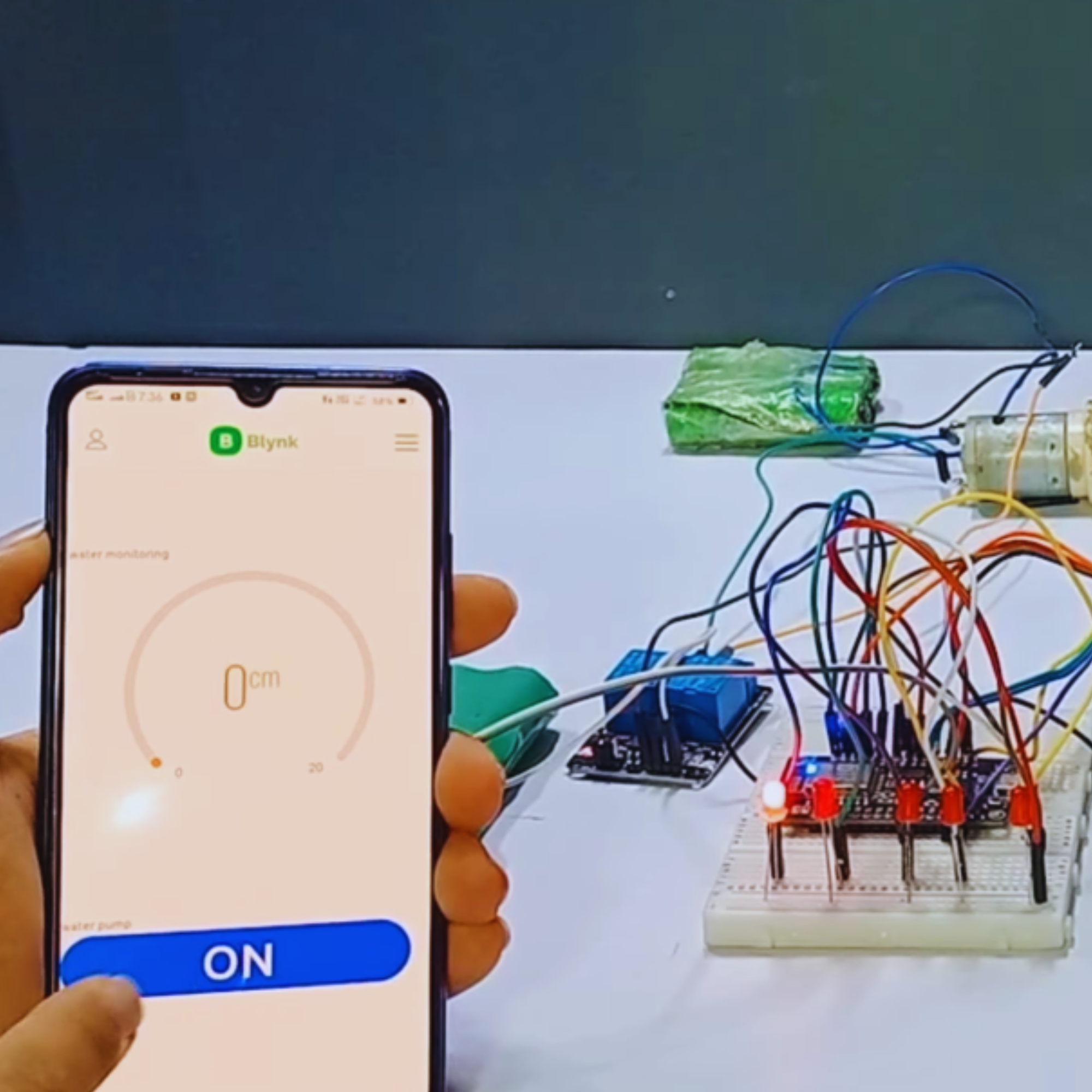

- Wi-Fi Connectivity: Allows remote monitoring and control via IoT integration.
- Battery: Powers the system and ensures continuous operation.
Working Principle
The IoT-Based Water Level Indicator operates on a real-time water level detection mechanism: it automates water pumping and ensures efficient water management.
- Water Level Detection: Ultrasonic sensor measures the water level.
- Threshold Monitoring: High and low levels trigger actions.
- Pump Activation: Relay module turns motor on when water is low.
- LCD Display: Shows real-time water level.
- Real-Time Alerts: Sends notifications for high/low levels.
Applications
This system has wide-ranging applications, including:
- Home Water Management: Monitors and controls water levels in residential water tanks.
- Industrial Use: Automates water management systems in industries and factories.
- Agricultural Systems: Ensures consistent water levels in irrigation tanks for farming purposes.
- Smart Homes: Integrates with home automation systems for seamless water level control and monitoring.
For more details about the product,
please reach out to us at:
Phone: 7303419282
Email: support@electricalbro.in
We’re here to help!
