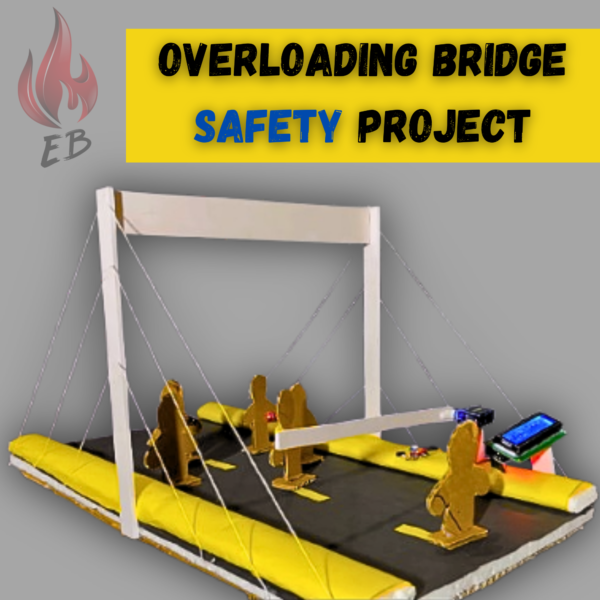

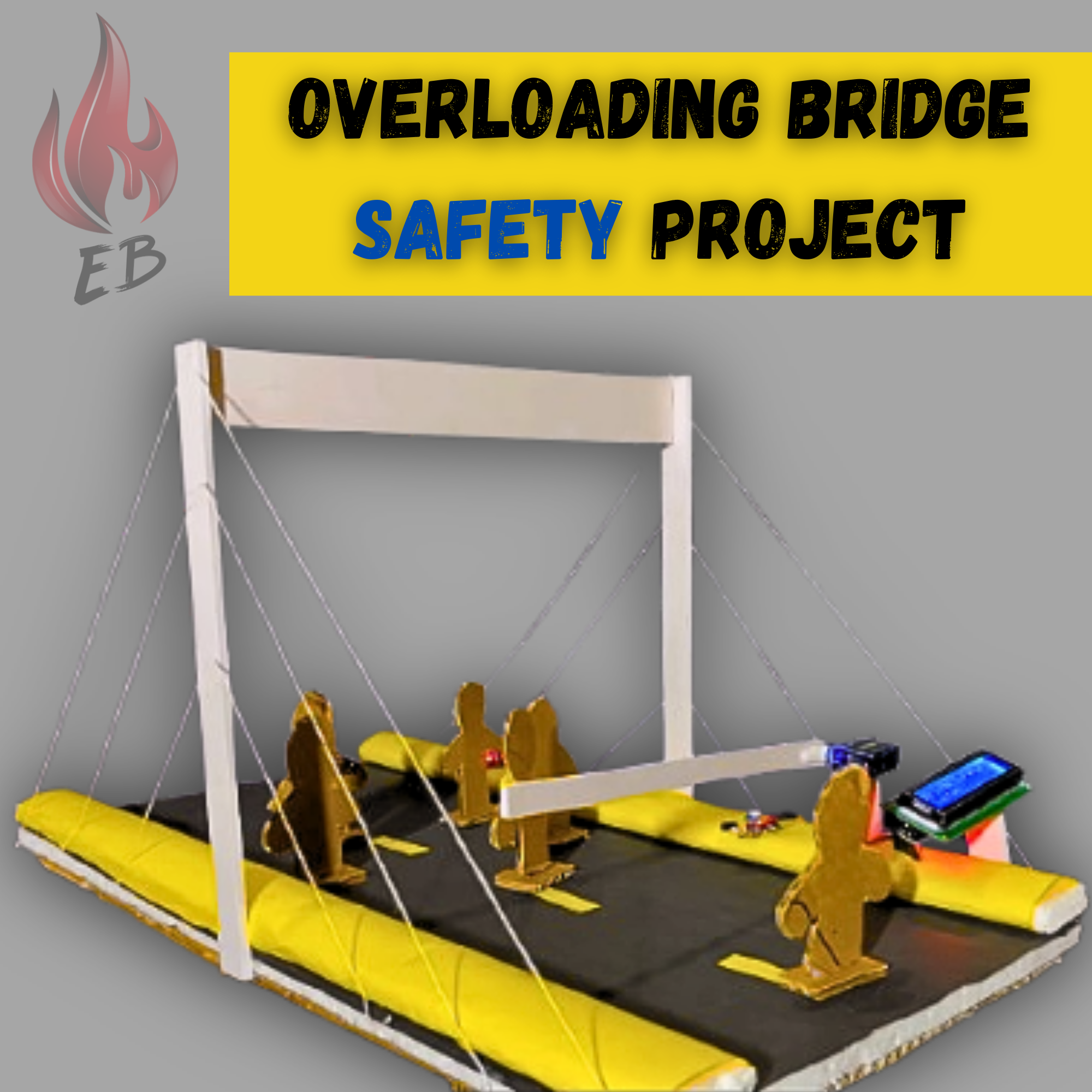

Overloading Bridge Safety Project – Prevents Overcrowding with Real-Time Monitoring

Introduction

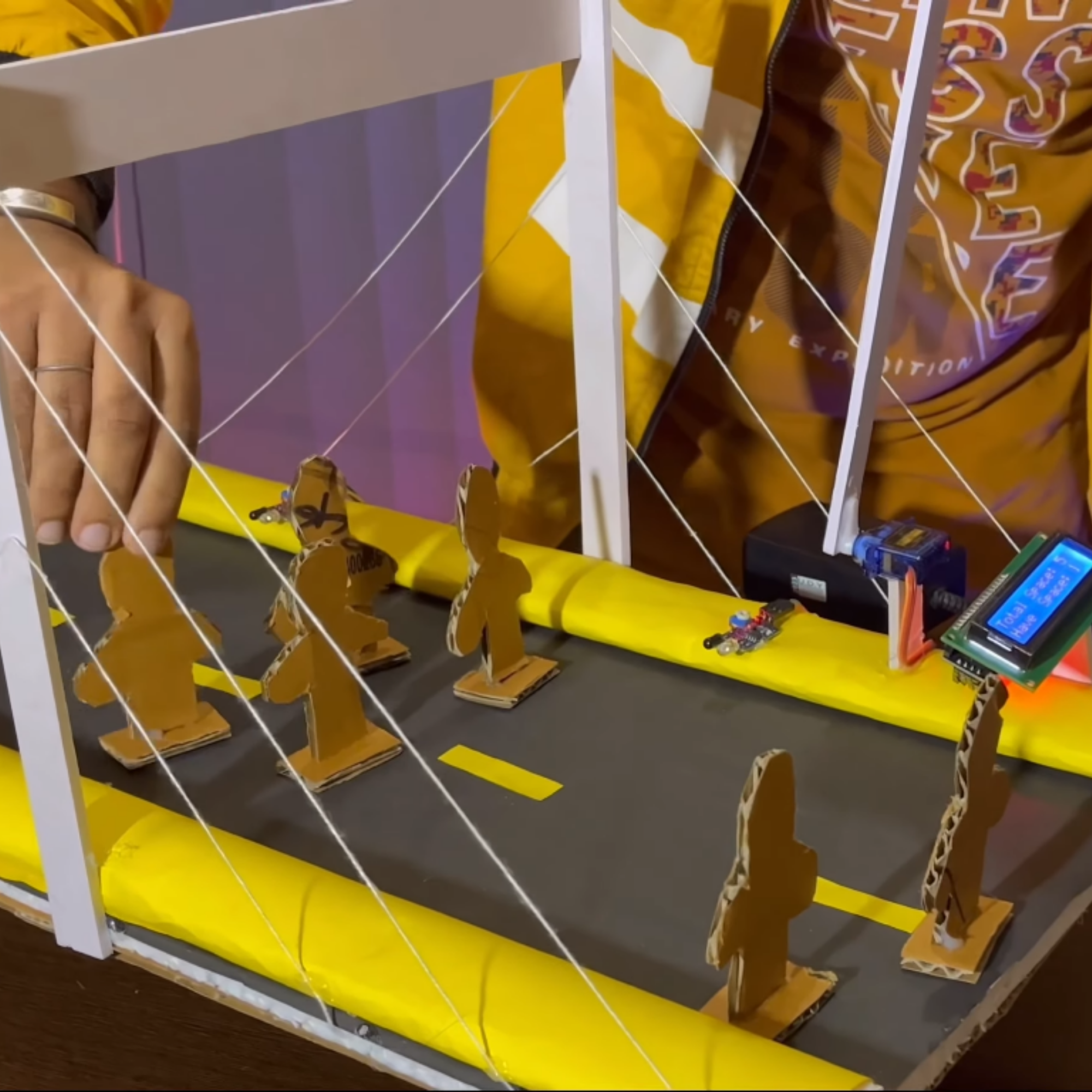

The Overloading Bridge Safety Project is designed to enhance safety on bridges by automatically controlling access based on the number of people on the bridge. Using a combination of IR sensors, servo motors, and an LCD display, the system ensures that the bridge does not exceed its safe capacity. When the bridge reaches its maximum capacity, the entry gate closes, and no more people can enter until someone exits.

Usage Instructions

To fully understand how to use our product and get the best performance, we highly recommend watching our comprehensive tutorial video on YouTube. In this video, we cover step-by-step instructions on how to set up and operate the product, along with an in-depth explanation of its features and functionality. By watching the video, you’ll gain a clear understanding of how to make the most out of your purchase, ensuring an optimal experience.

System Components

• Arduino: The core controller that processes data from sensors and triggers gate movements.
• IR Sensors: Used to count the number of people entering and exiting the bridge.
• Servo Motors: Controls the movement of the entry gate based on the system’s logic.

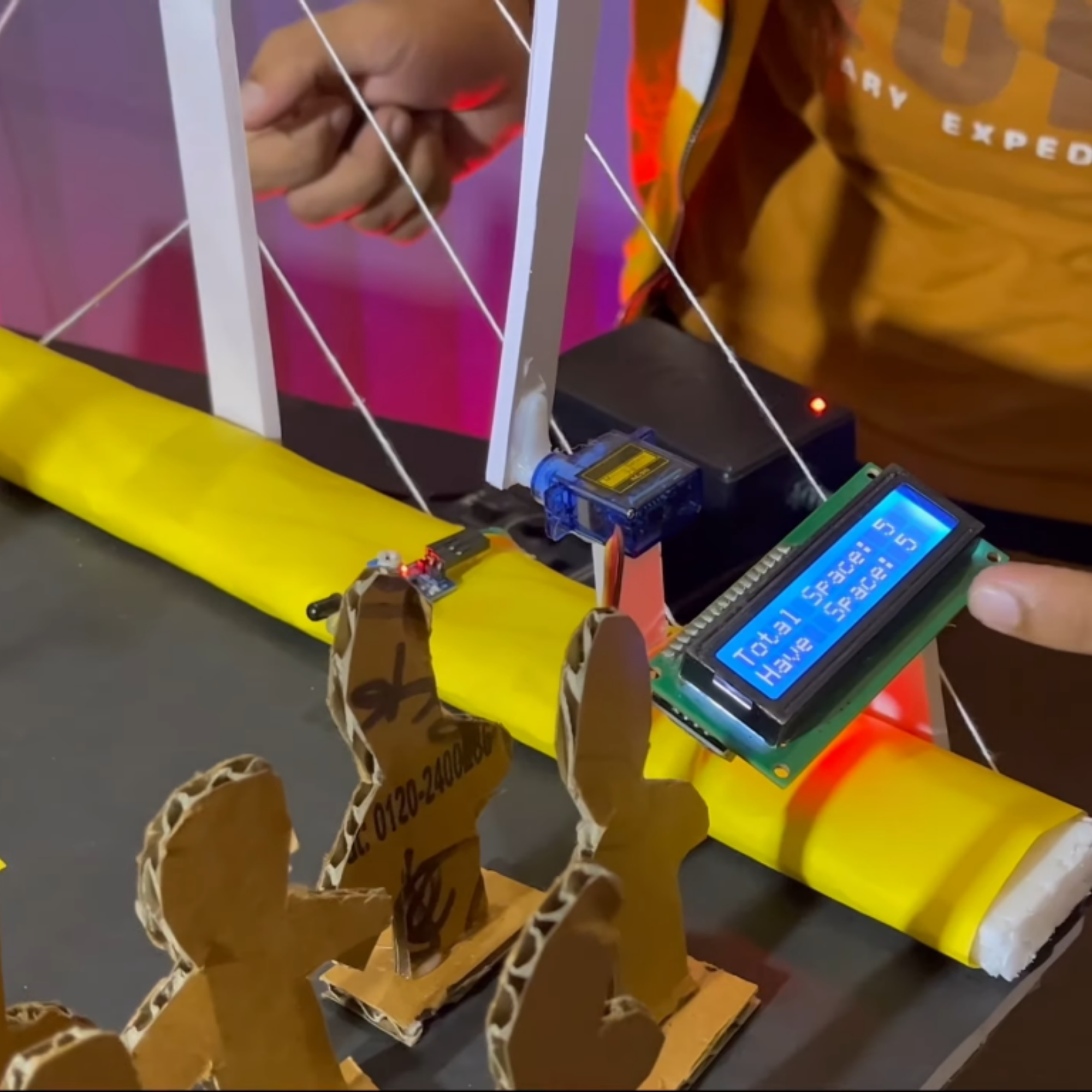

• LCD Display: Shows the current number of people on the bridge, providing a visual indication of the load.
• Battery: Powers the entire system, ensuring continuous operation without the need for an external power source.

Working Principle

The Overloading Bridge Safety System operates on a sensor-based mechanism: when the maximum capacity is reached, it triggers the servo to close the gate, monitors exits, and displays real-time capacity on an LCD.

• Capacity Detection: IR sensors track people entering the bridge.
• Real-Time Monitoring: The current count is displayed on the LCD.
• Automatic Gate Control: The servo closes the gate when full capacity is reached.
• Exit Monitoring: The gate reopens when someone exits, allowing new entries.
• Safety Alert: Alerts trigger when the bridge reaches full capacity.

Applications

This system has wide-ranging applications, including:

• Bridges: Ensures the safety of pedestrians on bridges by preventing overloading.
• Tourist Attractions: Ideal for tourist spots where high foot traffic needs to be monitored.
• Public Infrastructure: Enhances safety in public areas with limited space.
• Smart Cities: Can be integrated into the smart city framework for better traffic and safety management.
