Introduction

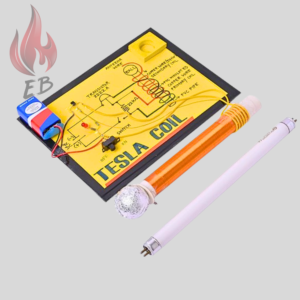

This project introduces the Tesla Coil System, a captivating electrical innovation that demonstrates the principles of electromagnetic induction and wireless energy transfer. Designed to generate high-voltage, low-current electricity, this system produces striking visual effects and serves as an educational tool for understanding advanced physics concepts.
System Components
- Primary Coil: Forms the base of the system and works in conjunction with the secondary coil to amplify the voltage.
- Secondary Coil: A tightly wound coil responsible for generating high-voltage output through resonance.
- Spark Gap: Regulates the energy transfer by allowing periodic discharge, creating the iconic sparks.
- Capacitor Bank: Stores and releases electrical energy to initiate the resonant circuit.
- Power Supply: Supplies the initial electrical energy required to operate the system.
- Toroidal Top Load: Acts as the terminal to concentrate the high voltage and facilitate the discharge.
Working Principle
The Tesla Coil operates on the principle of resonance and electromagnetic induction:
- Energy Input: The power supply delivers a high-frequency current to the primary coil.
- Electromagnetic Resonance: The primary and secondary coils resonate at the same frequency, amplifying the voltage.
- High-Voltage Discharge: The energy builds up in the secondary coil, eventually discharging as visible sparks or wireless energy.
Applications
This system has wide-ranging applications, including:
- Educational Demonstrations: Ideal for schools, colleges, and science fairs to teach advanced concepts of electricity and magnetism.
- Research and Development: Used in experiments related to wireless power and high-frequency applications.
- Entertainment and Displays: Creates visually stunning effects for events, museums, and exhibitions.
- Hobby Projects: Offers enthusiasts an engaging platform for building and learning about high-voltage systems.
- Historical Significance: Serves as a tribute to Nikola Tesla’s groundbreaking work in electrical engineering.
For more details about the product,
please reach out to us at:
Phone: 7303419282
Email: support@electricalbro.in
We’re here to help!
