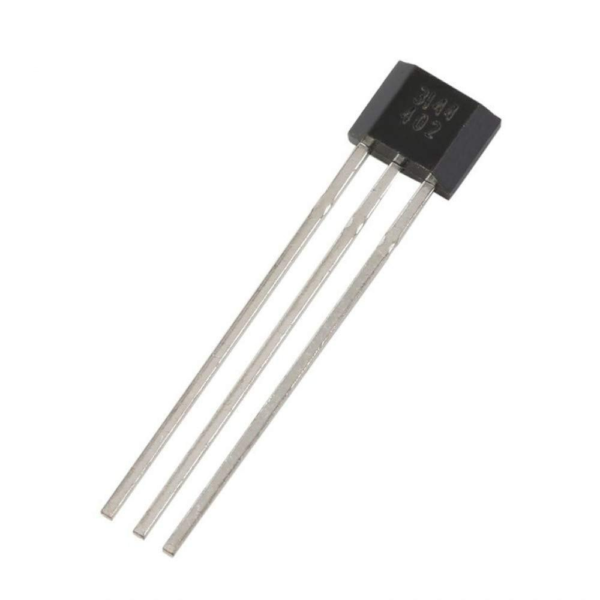

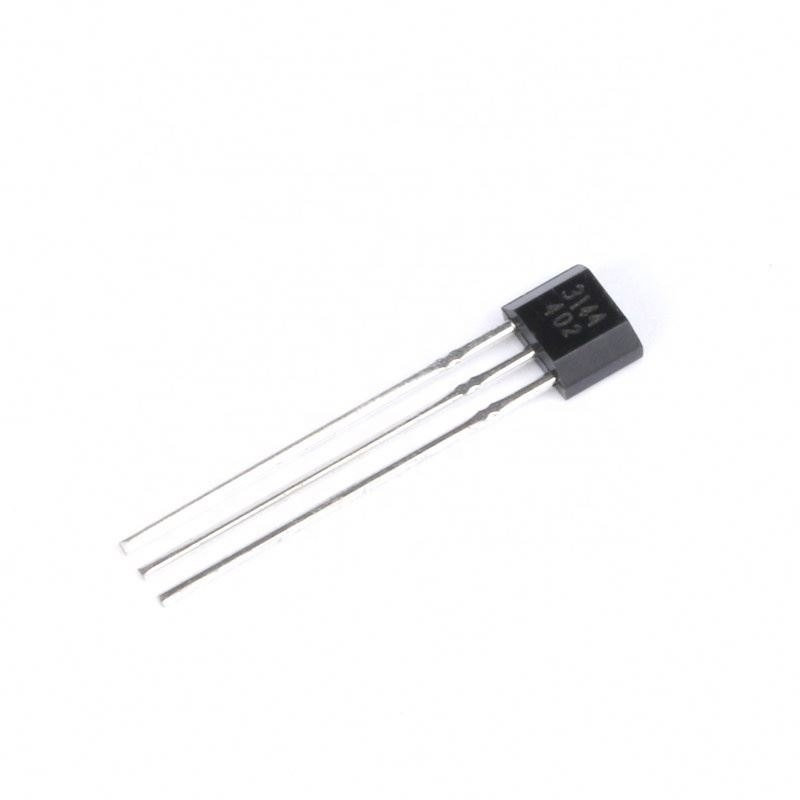

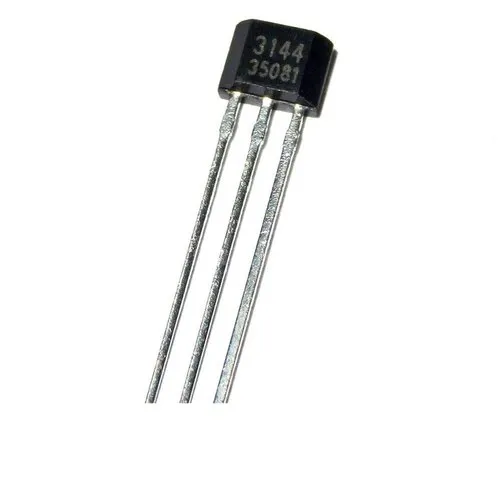

A3144 Hall Effect Sensor

The A3144 is a versatile Hall effect sensor designed for detecting magnetic fields and converting them into a digital signal. This sensor is widely used in proximity sensing, speed detection, and current sensing applications, providing a reliable and cost-effective solution for detecting the presence of magnetic fields.

The A3144 operates by generating a voltage output when exposed to a magnetic field. It features a digital output, which goes low (logic 0) when a magnetic field is detected and high (logic 1) when there is no magnetic field. This makes it ideal for use in applications such as rotation detection, speed measurement, and position sensing in motors and other rotating equipment.
